Boretrak3
Trust Your Measurements.

Trust Your Measurements
Tested against first and second order survey instruments, Boretrak3's high grade gyro sensors deliver high performance and reliable measurements that you can trust

Gyro-Based Solution
The Boretrak3 utilizes a miniature inertial measurement
unit (IMU) which contains a triaxial accelerometer,
magnetometer, and gyro. The gyro provides the Boretrak3 with an
accurate, live heading which is tracked as the probe is
deployed along the borehole. If the Boretrak3 gyro loses
calibration while inside the hole, it will automatically use
the compass reading to apply a calibration.

Deployment Accessories

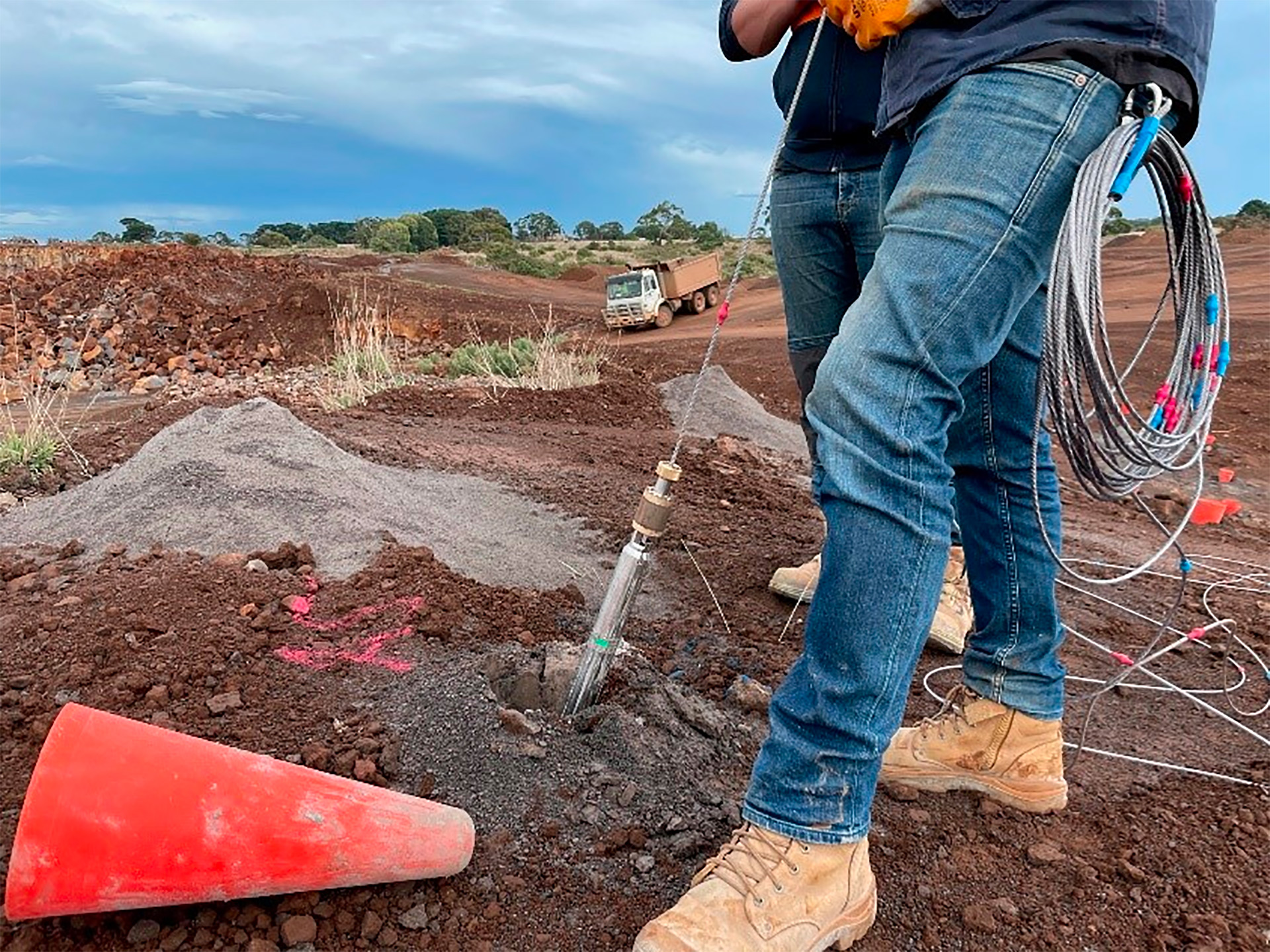

The gyro frees up the Boretrak3 to be deployed using
a variety of methods. Downhole, the probe can be
lowered on a simple wire line. Horizontal and uphole
the Boretrak3 can be supplied with a semi-rigid push
rod system, spooled out from a cable reel. Alternatively,
traditional Boretrak rods can be used and an adaptor
allows customised deployment devices to be fabricated
for applications unique to your site.

Display and Outputs
All data from surveyed holes is immediately displayed,
in 3D graphical mode, 2D schematic mode, or in
tabular formats.
Back in the office, data can be transferred onto
Carlson Boretrak running on your desktop or laptop
PC for further analysis.

Worldwide Service Centers
Carlson's worldwide network of service centers makes it convenient and fast to guarantee your system is always reliable

Learn more about how Carlson's field-proven borehole deviation measurement solution can accurately and efficiently improve your operations.
